| Brand Name : | PTE |

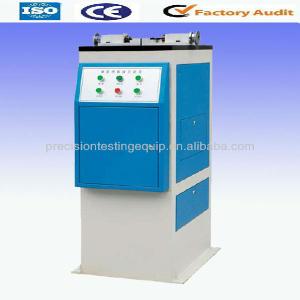

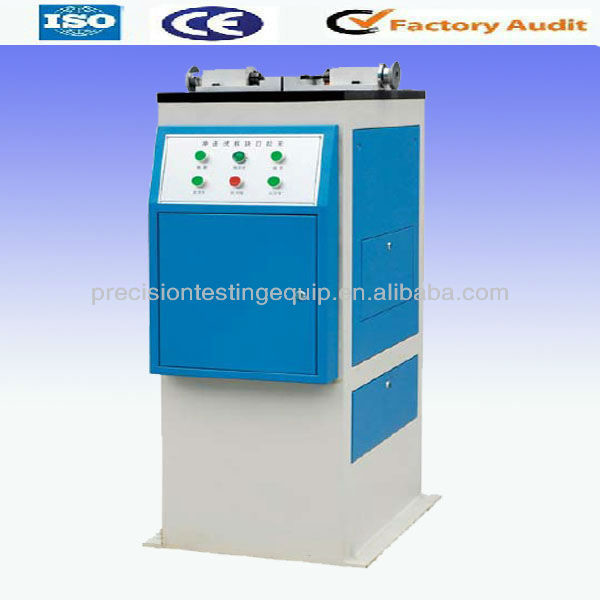

| Model Number : | Impact Test Notching Electric Broaching Machine Universal impact testing machine |
| Certification : | CE |
| Payment Terms : | L/C, T/T, Western Union |
| Delivery Time : | wooden case |
1. Application
Impact Test Notching Electric Broaching Machine Universal impact testing machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries Impact sample U V type notch broaching machine/Impact specimen notch milling machineand departments of science &research
2. Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007
3.Features
3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;
3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.
3. Main Technical Specifications:
| Shape of sample notch | V2 mm,U2mm,(U3mm, U5mm alternative) |
| Sample size | (10, 7.5, 5)x10x55mm |
| Cutting mode | Hydraulic |
| Journey of broach | V2, U2, U3 350mm; U5 380mm |
| Broaching Speed | 2.5m/min |
| Broach material | W18Cr4V |
| Power supply | 380V 50Hz 0.4Kw |
| Max. Dimension | 660x500x1240mm |
| Weight | 200kg |
